Air Showers & Soft Walls

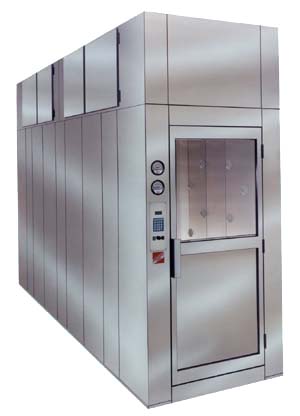

Cleanroom Air Shower

Air Showers offer an effective way to reduce contaminants carried by individuals entering or leaving a controlled area. The Air Shower can be the solution to many contamination problems.

Air Shower Tunnels are protected passageways that allow large quantities of personnel to pass into controlled areas.

Air Showers and Tunnels supply concentrated CLASS 100 sterile air flows to remove contamination while an individual stands in or walks through a specially constructed air chamber. Pressurized air streams from nozzles at a velocity ranging from 6,000 to 10,000 feet per minute. This ensures the efficient scrubbing action necessary for the removal of particulate matter. Contaminated air is directed downward through the grilles and hollow walls of the Air Shower to the filter. Particles as small as 0.3 microns are removed with 99.99% efficiency.

The Air Shower Tunnel is designed as a combination of basic floor plan styles placed either side by side or end to end. Air Showers and Tunnels meet all federal, military and industrial specifications for use with life science, bio medical, pharmaceutical, parental drug, microelectronic, aerospace, precision manufacturing and other applications.

Cleanroom Air Shower
Style Description Size Pack Qty
AS3 Air Shower Tunnel Desired Dimensions: Each


Download Documents
