Thermal Transfer & Direct Thermal: 600 DPI

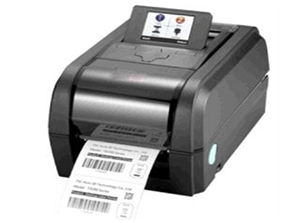

The UltraLabel PRO-600 series is a desktop cleanroom label printer designed for critical environment applications. The printer offers enhanced functionality including print resolution of 600 dpi and a user- friendly TFT display.
UltraTape Cleanroom Labels & Printer Ribbons
In order to supply a complete solution for label printing in cleanroom environments, UltraTape offers both labels and ribbons that are compatible with the UltraLabel PRO-600.
- Cleanroom labels available in a variety of facestocks and adhesives
- Cleanroom compatible ribbons that withstand high temperatures and are chemical resistant
SPECIFICATIONS
UltraLabel PRO-600 Thermal Transfer Bar Code Printer
| Printer Model: | ULP-600 |
| Resolution: | 600DPE |
| Print Method: | Thermal Transfer & Direct Thermal |
| Print Speed: | 102 mm (4")/second |
| Max. Print Width: | 106 mm (4.17") Max Length = 2540 mm (100") |
| Enclosure: | Clamshell with double-walled plastic |
| Physical Dimension: | 226 mm (W) x 200 mm (H) x 332 mm (D) 8.90" (W) x 7.87" (H) x 13.07" (D) |
| Ribbon: | 300 m long, max. OD 67 mm, 1" core (coated outside) Width: 40 mm ~ 110 mm (1.6" ~ 4.3") |
| Label Roll Capacity: | 127mm (5") OD |
| Processor: | 32-bit RISC CPU |
| Memory: | 128 MB Flash/128MB SDRAM/MicroSD card reader for memory expansion, up to 32 GB |
| Power: | Input: AC100-240 V, 2.5A, 50-60 Hz, Output: DC 24V, 5.41A, 130W |
| Interface: | USB 2.0 | RS-232, Internal Ethernet, 10/100 MBps | USB Host | Centronics (factory option) | External Bluetooth (user option), Slot-in 802.11 a/b/g/n/ wireless (dealer option) |
| Operation switch, button: | 1 Power Switch, 6 Operation Buttons, 3.5" Color TFT Display 320-240 pixel |
| Sensors: | Transmissive gap sensor, Black mark reflective sensor (position adjustable), Ribbon end soensor, Ribbon encode sensor, Head open sensor |
| Internal Font: | 8 alpha-numeric bitmap fonts, Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font |
| Barcode: | 1D bar code: Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleaved 2 of 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China post, ITF14,EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS 2D bar codeTLC39, CODABLOCK F mode, PDF-417, Maxicode, DataMatrix, QR code, Aztec, Micro PDF 417,GS1 DataBar (RSS barcode) |
| Font & Barcode Roatation: | 0,90,180,27 degrees |
| Printer Language: | TSPL-EZTM (Compatible to EPL, ZPL, ZPL II) |
| Media Type: | Continuous die-cut, black mark, fanfold, notch |
| Media Wound Type: | Outside |
| Media Width: | 19~112 mm (0.75" ~ 4.4" |
| Media Thickness: | 19mm 0.055 ~ 0.254 mm (2.17 ~ 10 mil) 10mm (0.4") |
| Media Core Dia.: | 2.54 ~ 38.1 mm (1" ~ 1.5") |
| Environment Condition: | operation: 5°-40°C (41°-104°), 25%-85% non-condensing / Storage:-40°-60°C (-40°-140°), 10%-90% non-condensing |
| Safety Regulations: | FCC Class B, CE Class B, RCM, UL, cUL, TÜV/Safety, CCC, BIS, EAC, ENERGY STAR® |
| Accessories: | Windows labeling softward CD, Quick start guide, USB cable, Power cord, External powersupply |
| Limited Warranty: | Printer: 2 years / Print head: 1 million inches (25km) or 12 months whichever comes first |
| User Options: | External label roll mount, | KP-200 Plus keyboard display unit, KU-007 Plus programmable smart keyboard |
